SUMMARY

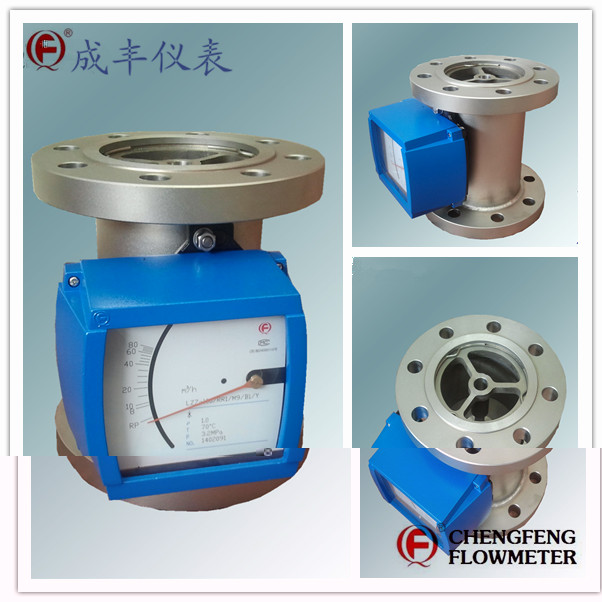

 Standard LZ series metal pipe float flowmeters are composed of one measuring pipe and on side indicator.The site indicator can be installed also with additional electric devices, suitable for liquid and gas measurement.
The flowmeter adopts variable area measuring principle. The measuring device is composed of one taper measuring pipe and floater. The floater can move freely up and down in the taper measuring pipe to change the flow area in the pipe.When the flow changes, the vertical position of the floater inside the measuring pipe
changes correspondingly.Through magnetic transmitting system, the position of the floater is transmitted to the dial scale of the indicator to indicate the flow.
In M6,M8, M9 indicator, the follow-up magnet movement is transmitted directly to the dial scale.In M7 indicator, when the follow-up magnet rotates, the needle driven by the cam plate indicates linearly the flow.

Characteristics

1).All metal construction, strong and stable.
2).Short stroke,compact structure.
3).Low pressure loss design.
4).New style magnetic coupling structure ensures that the signal transmission is more stable.
5).Magnetic filter can be added as customer requirements.
6).Thermal insulation or tracing heat jacket.
7).Used in the gas and liquid measurement in all industries. The measurment parts can adopt  different  materials to be suitable for different medias.
8).Suitable for harsh environment and seriously corrosion media. Having good heat resistance and pressure resistance.
9).Intelligent dual-line LCD display,on site instant/ umulative flow display and back light as options.

10).Two-wire system,battery,alternating current can be choosed to supply the power.
11).With data recovery,data backup and powerfail protection functions.

Technical Parameters

Type Selection

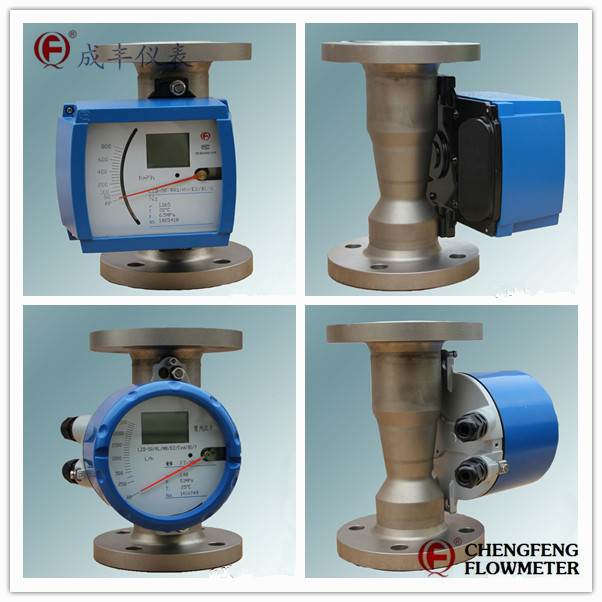

The third generation of metal tube float flowmeter by Chengfeng Flowmeter professional research and development, than the traditional metal tube rotameter with high precision, good repeatability, and the advantages of small services, by a measurement of tube and a local indicator, 5 patents.The same price, better product, only to return for more customers.

Good appearance always can attract more people's attention, as feng instrument a new third generation of metal tube float flowmeter has arrived, is not only in shape inside and outside the cone tube one-piece, and has five patents, in performance is slightly better, have the international professional level, import the quality of the domestic price, let you had to be tempted.
